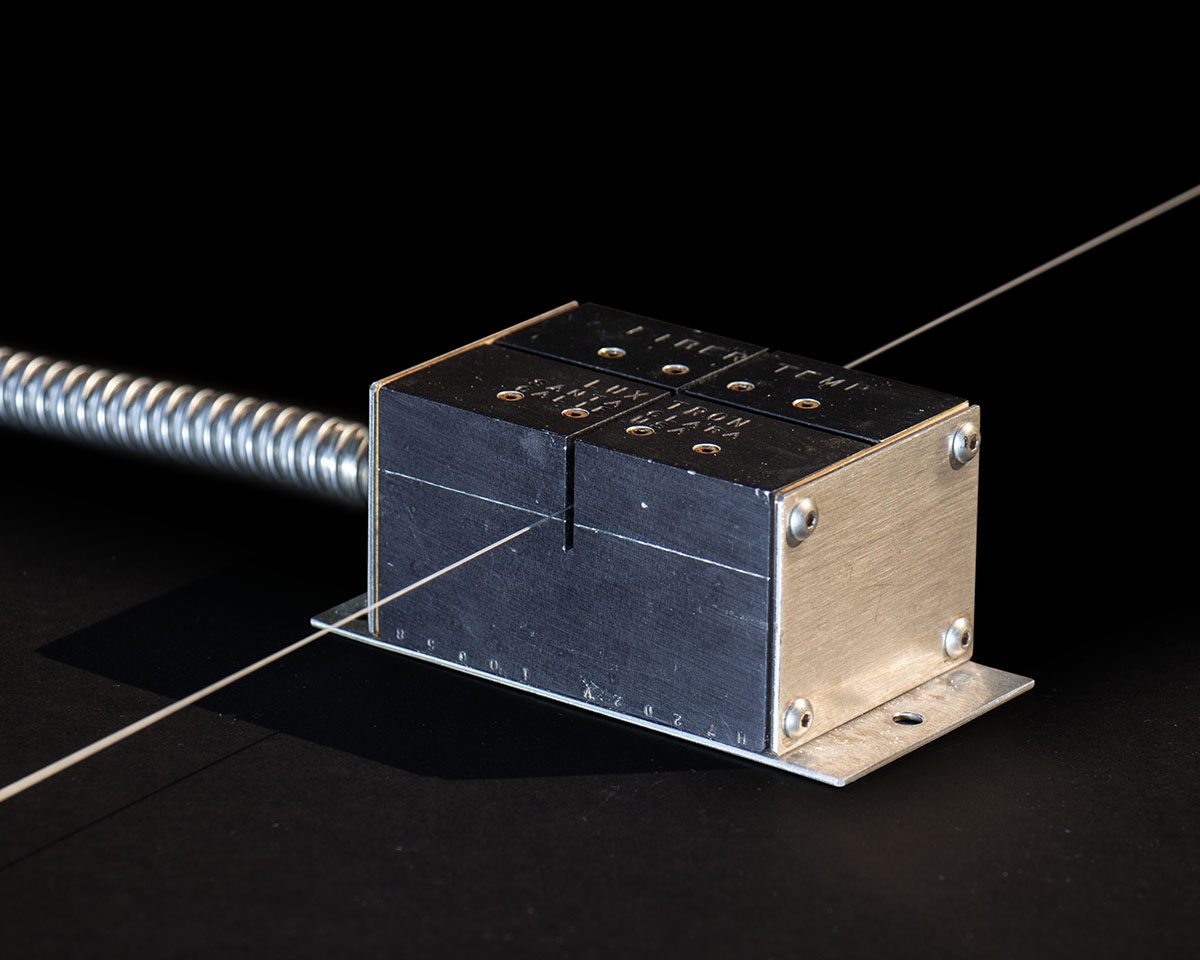

LUNE FIBERTEMP LWL: Optical Fiber Temperature Sensor for Ultra-Fine Yarns
The FIBERTEMP LWL (FTOSH) is an optical-version temperature sensor built for ultra-fine synthetic fiber diameters from 125 to 500 μm — delivering precise, non-contact temperature measurement in fine-yarn manufacturing.
Using optical sensing technology, the FIBERTEMP LWL measures temperatures between 10 and 300°C (50 to 482°F) for fiber diameters in the 125–500 μm range. Designed specifically for fine-fiber applications where conventional sensor contact would damage or disturb the material.
Fiber diameter range: 125–500 μm (0.0049″–0.196″)
Applications: Synthetic yarn manufacturing · Fine-fiber temperature monitoring
- Fiber diameter: 125–500 μm
- Sensor type: Optical (LWL)
- Measuring range: 10–300°C (50–482°F)
Access technical documentation and accreditation materials
FIBERTEMP LWL (PDF)
Complete specifications, performance data, and ordering information.
