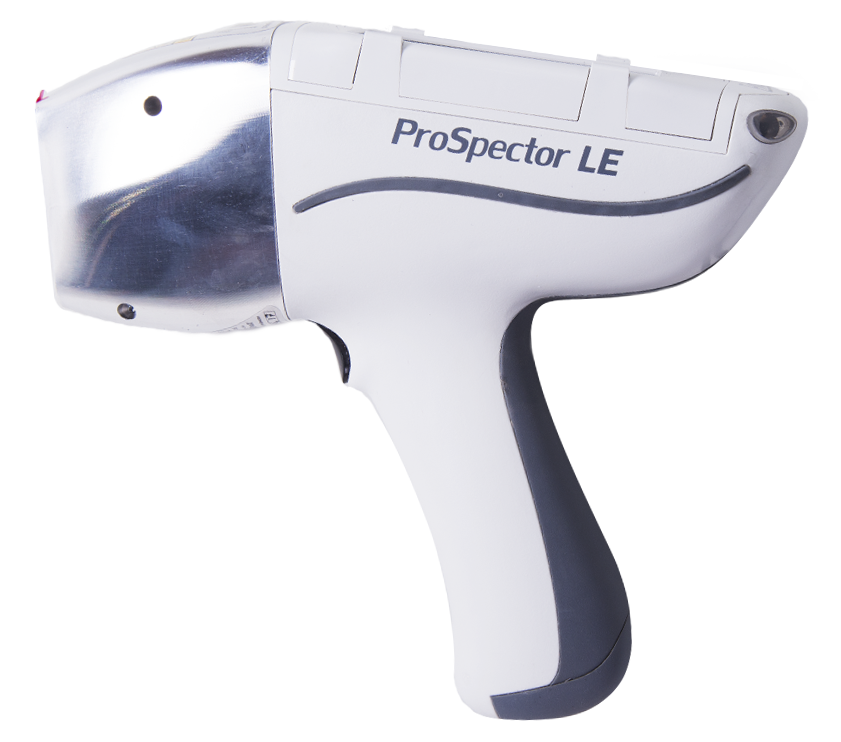

ElvaX ProSpector: Intuitive Handheld EDXRF for Elemental Analysis
The ElvaX ProSpector is a portable, handheld energy-dispersive XRF analyzer designed for ease of use without sacrificing precision — delivering reliable elemental analysis in the field, on the production floor, or in the lab.
The ProSpector is built around a 7.2 V Li-ion battery with up to 8 hours of operating time under normal use. It operates at up to 50 kV (standard 40 kV) with a detectable range of Cl to U, or Mg to U with the light element option.
The system is controlled by an HP iPAQ PDA with a 4-inch high-resolution touchscreen display — providing high flexibility and usability. An optional lab stand allows the ProSpector to function as a laboratory-grade instrument under PC or laptop control.
Detectable range: Standard: Cl to U · Light element option: Mg to U
Suitable for: On-site PMI testing · Incoming quality control · Scrap sorting · Lab use (with optional stand)
- Battery: 7.2 V Li-ion · Up to 8 hours operating time
- High voltage: Up to 50 kV (standard 40 kV)
- Control: HP iPAQ PDA · 4-inch touchscreen
- Optional: Lab stand for PC/laptop control
Access technical documentation and accreditation materials
Complete specifications, performance data, and ordering information.
