LUNE FLATTEMP: Non-Contact Temperature Sensor for Foils, Strips, & Flat Objects

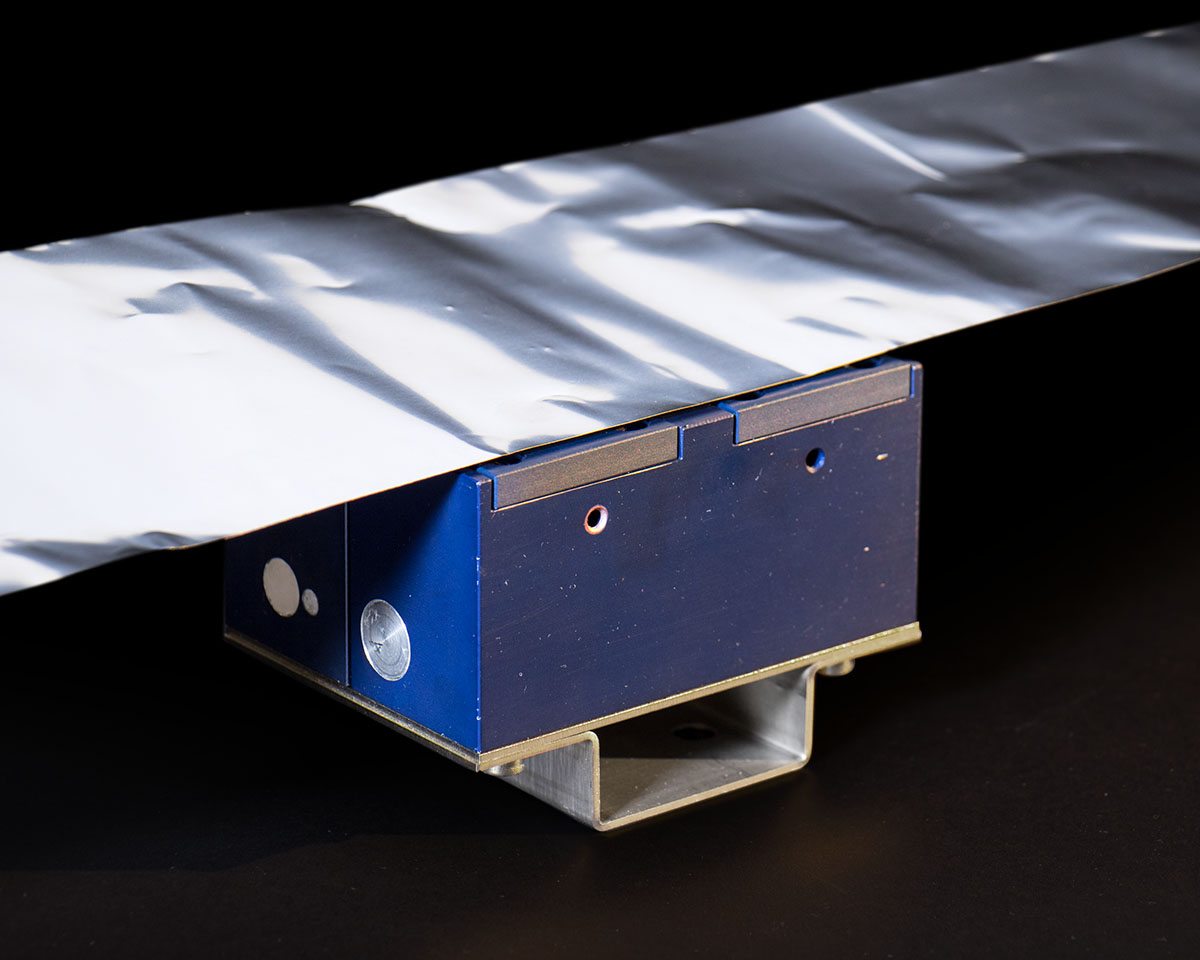

The FLATTEMP (FLT) flat basic version is optimally suited for temperature measurement of foils, strips, and flat objects made of any material — with a 1.0 to 3.0 mm measurement gap accommodating a range of material thicknesses.
The flat sensor head design of the FLATTEMP makes it the go-to solution for monitoring temperature in strip processing, foil production, and any flat material application. Measuring range: 10 to 300°C (50 to 482°F), with a 400°C version available on request.
Suitable for: Foils · Strips · Flat objects (any material)
Measurement gap: 1.0–3.0 mm (0.0039″–0.118″)
- Measurement gap: 1.0–3.0 mm
- Measuring range: 10–300°C (50–482°F) · Optional: 400°C (752°F)
Access technical documentation and accreditation materials
FLATTEMP (PDF)
Complete specifications, performance data, and ordering information.
