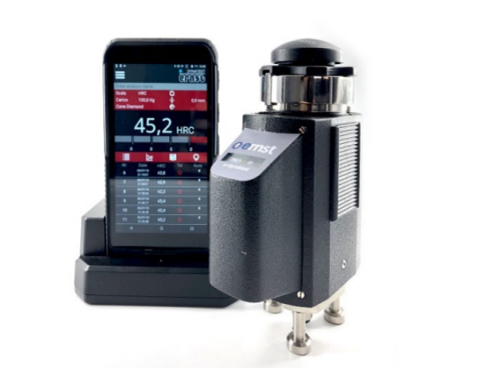

E‐dynatest Portable Rockwell Hardness Tester

Test a wide range of metals without changing the indenter with the e-dynatest. This is a portable heavy load (100 kgf) Rockwell hardness tester which uses the Rockwell method. A wireless data sharing application that is Android friendly puts this tool over the top.

SCHEDULE A LIVE DEMO

How Can We Help You?

Name

Calibration red background
Target Icon

Verichek’s ISO certified calibration and periodic maintenance will help protect your investment and ensure that your equipment is not leading to any downtime!

Protect Your Investment!

Product Information and Brochures

The e-dynastest Rockwell hardness Tester is portable, which allows for the measurement of difficult to move pieces that are larger. The e-dynatest is a miniaturized benchtop hardness tester uses high load (100kgf) during the measurement, and the e-dynatest is not affected by the state of the surface. It can be easily used, simply by pressing it on the workpiece to be checked.

E‐dynatest is delivered with a hard plastic carrying case containing the following accessories:

  • Diamond Rockwell indenter
  • 1/16”hardmetalindenter
  • Rockwell/Brinell hardness block
  • 3 anvils for flat surfaces
  • 1 anvil for cylindrical surfaces
  • 1 USB Power supply
  • Wireless battery charger
  • Rechargeable battery pack
  • Operation manual
vts-portable

Portable

Allows for on site measurement of any piece. The e-dynastest is adjustable in all directions allowing savings on handling and cutting costs. Its wireless design is great for ergonomy.

vts-customizable

Customizable

The e-dynatest has a measuring head that is designed to be used in different positions (vertical, horizontal, upside-down).

vts-accuracy

Verichek technical services Accuracy and Repeatability

Offers the same accuracy and repeatability as a traditional benchtop tester but in its portable form. The e-dynatest portable hardness tester has been designed to avoid influences due to deflection of the test piece.

vts-android

Android Application

The Android application offers the possibility of detecting, managing, sharing, archiving and printing data in a simple and immediate way.

vts-accredia-certification

ACCREDIA certification (ILAC MRA-Mutual Recognition Arrangements )

Offers a competitive advantage in markets where certification is required.

More Features

Features
Test Load 980N (100 kgf)
Test MethodRockwell
Measuring Range and Avaialble Hardness Scales"+/-" 0, 3, HRC
Optional Hardness ScalesHRC (10-70), 1HB30 (60-700), 2HB30 (100-500), N/mm (350-2050), Kg/mm (40-210)
Available IndentersHBS, HB10, HRA, HRE, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, SHORE C for steel, SHORE D for steel, all Rockwell, Brinell, Vickers, Shore, Leeb scales
Minimum Mass1 diamond Rockwell indenter and 1 hard metal ball indenter
Minimum Measurable ThicknessNot influenced by mass
Tablet <1 mm (hardness depending)
ConnectivityBluetooth connection between electronics and probe, wireless rechargable probe, wireless connectivity with LAN
Energy Saving FunctionsStandard recharagble and replaceable battery, Power On/Off touch sensor, Fast recharging, long battery life
